| Model | Used Sany 335H Excavator |
| Weight | 34300kg |
| Rated power | 212kW/2000rpm |
| Bucket capacity | 1.5-1.8m³ |
| Engine Model | Isuzu GH-6HK1 |
| Walking speed | 5.2/3.4km/h |
| Maximum digging height | 10100mm |
| Maximum digging depth | 7410mm |
| Maximum digging radius | 11050mm |
| Maximum unloading height | 7025mm |

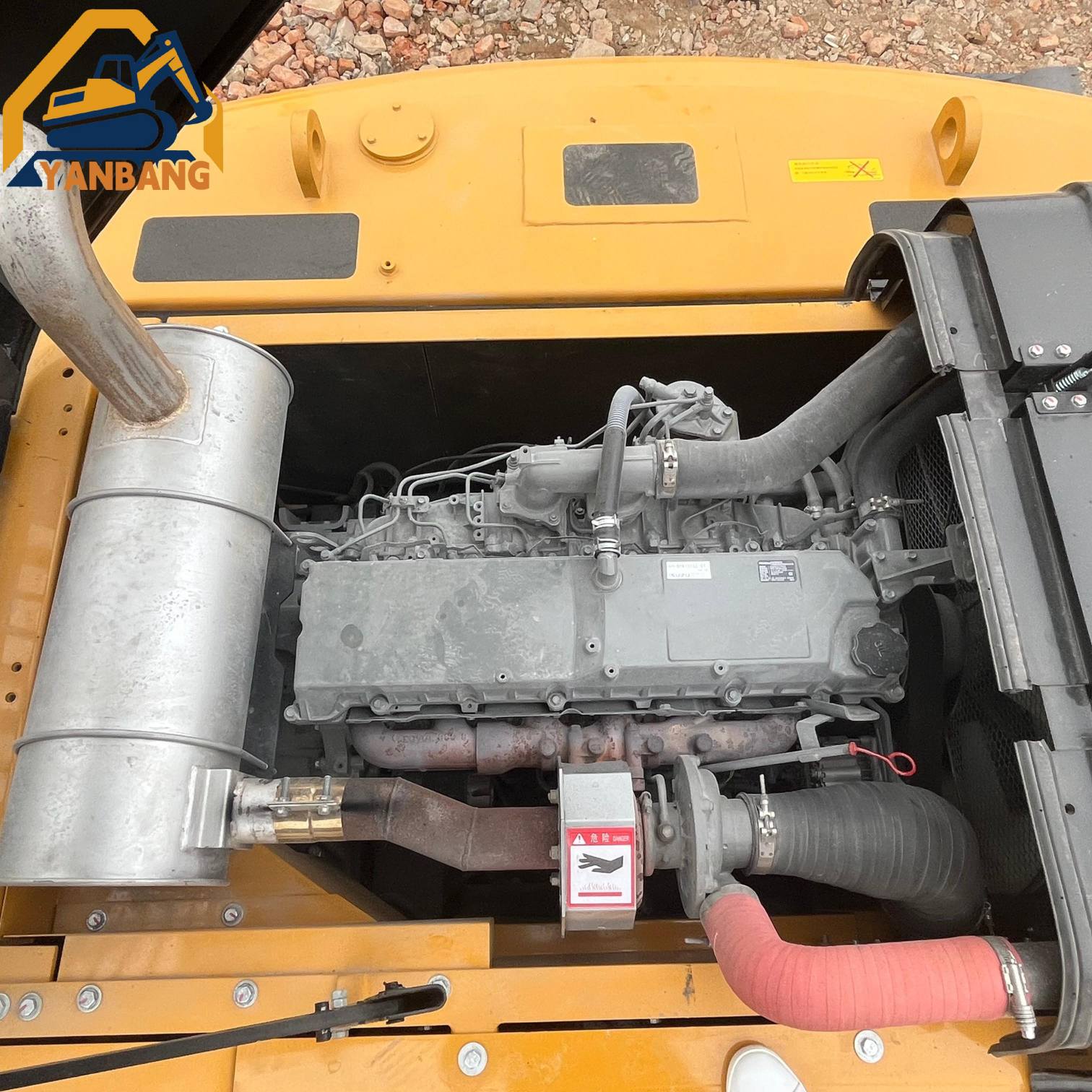

Strong power: Equipped with Isuzu 6HK1 engine, 212kW power, large displacement and torque, excellent high-altitude performance, upgraded turbocharger, complete combustion and low fuel consumption.

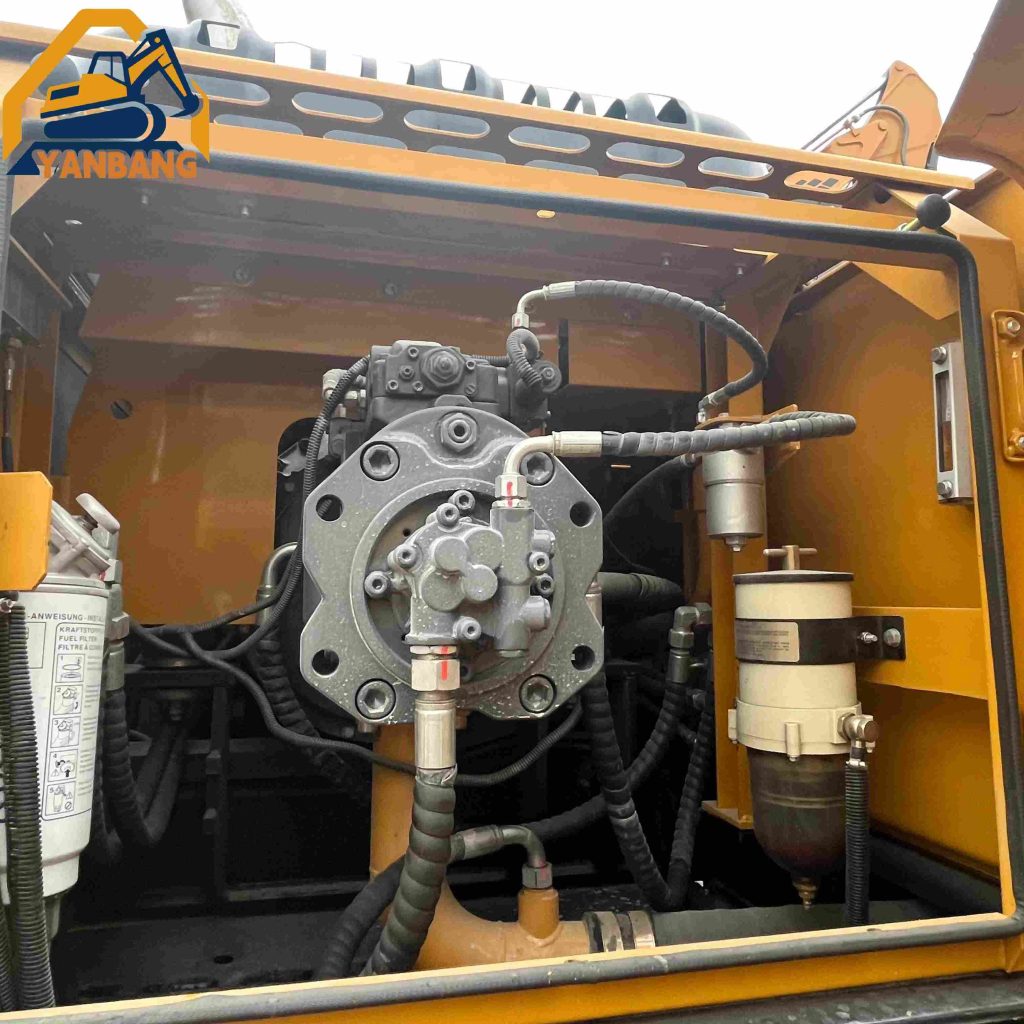

Advanced hydraulic system: Equipped with a 32NA main valve and a K5V160 main pump, it features low pressure loss, excellent flow distribution, smooth compound actions, and a 10% increase in pump power output compared to traditional methods.
High efficiency and energy saving: By applying load adaptive and other technologies, the digging speed of the bucket and boom can be increased by up to 10%, and the overall fuel saving exceeds 10%.
Strong digging force: The bucket digging force reaches 220kN, the bucket rod digging force is 170kN, the bucket capacity is 1.5-1.8m ³, and the bucket shape is optimized, ensuring high digging efficiency.
Convenient maintenance: For the working conditions in mines, the operation space for replacing maintenance parts has increased by 20% to 30%, and the brand-new fuel filtration system is suitable for different types of oil.
