| Model | SY235H |
| Weight | 23000kg |
| Rated power | 128.5kW/2100rpm |
| Bucket capacity | 1.35m³ |
| Engine Model | Isuzu 4HK1 |
| Walking speed | 5.6/3.5km/h |
| Maximum digging height | 9640mm |
| Maximum digging depth | 6785mm |
| Maximum digging radius | 10150mm |
| Maximum unloading height | 6725mm |

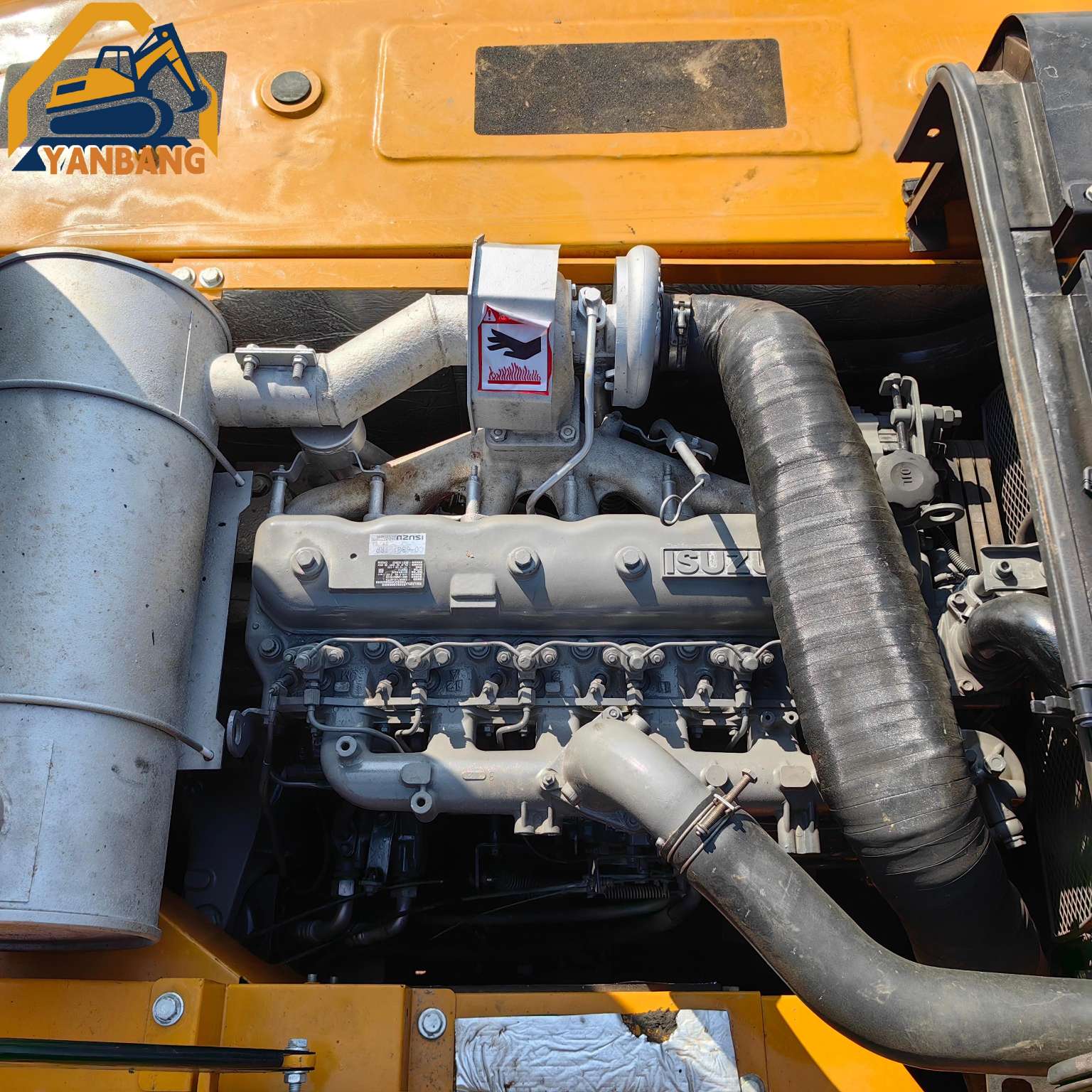

Powerful and fuel-efficient: Equipped with a custom imported Isuzu high-power 12.4kw National IV engine, it adopts DOC+DPF+EGR after-treatment technology, eliminating the need to add urea. Combined with the dynamic optimization intelligent control system, the best matching between the engine and the main pump is achieved, resulting in lower fuel consumption.

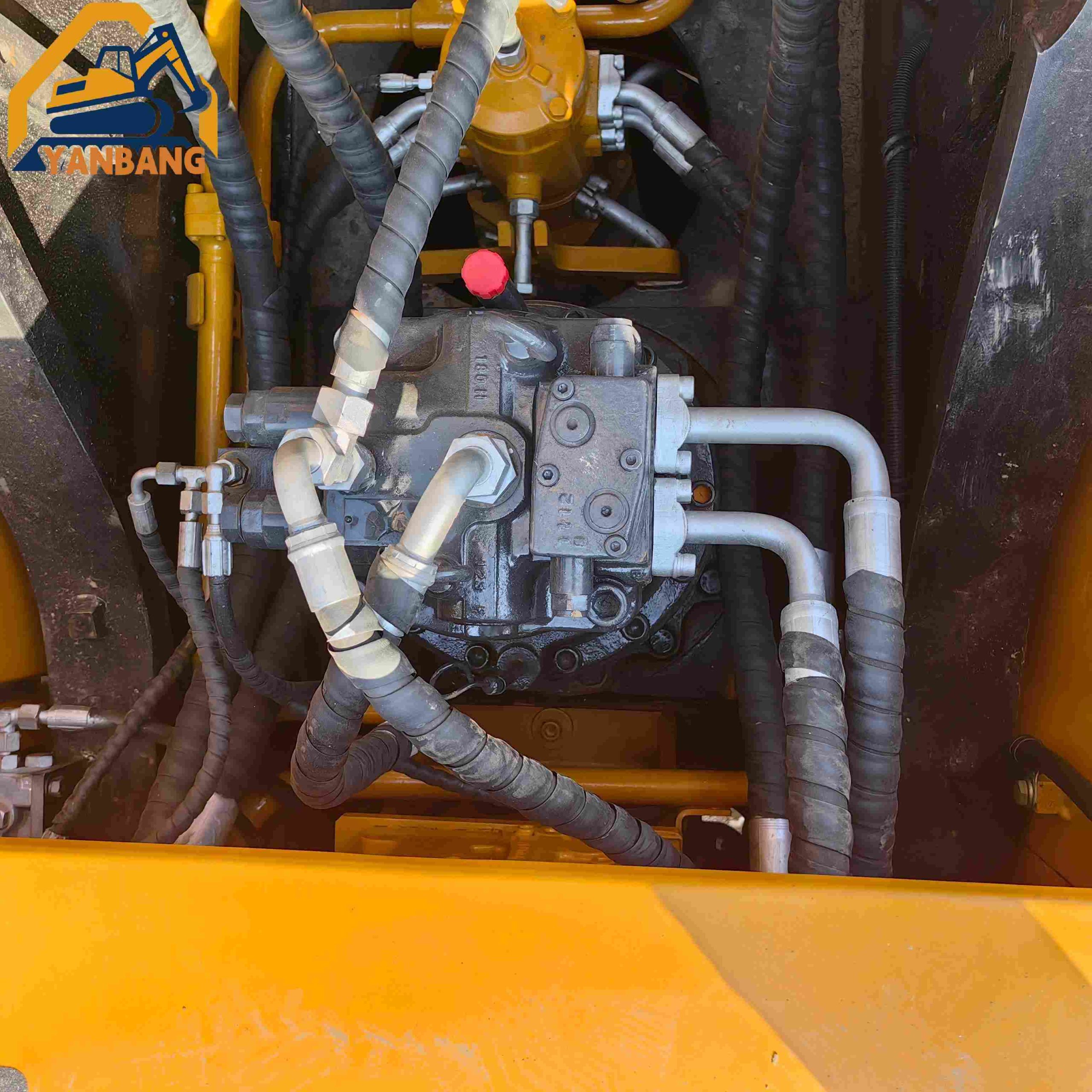

Precise and comfortable operation: It adopts an upgraded fully electronic control system, which controls the main valve through high-performance electro-proportional control to achieve high-precision control of the valve core by the controller. The brand-new hydraulic circuit reduces the power loss of oil return and has a high power transmission rate.
Sturdy and durable structure: The working device is made of high-strength steel plates, high-strength forgings and wear-resistant steel, and an integrated connecting rod is cast, which is highly reliable. Reinforced four-wheel drive and one belt ensure the strength of the walking device in harsh environments.
Outstanding digging capacity: Equipped with a new 1.35m³ bucket as standard, the digging force can reach 158kN, increasing the loading capacity by 10%. Optional 1.1m³-1.35m³ buckets are available to meet the requirements of different working conditions.
