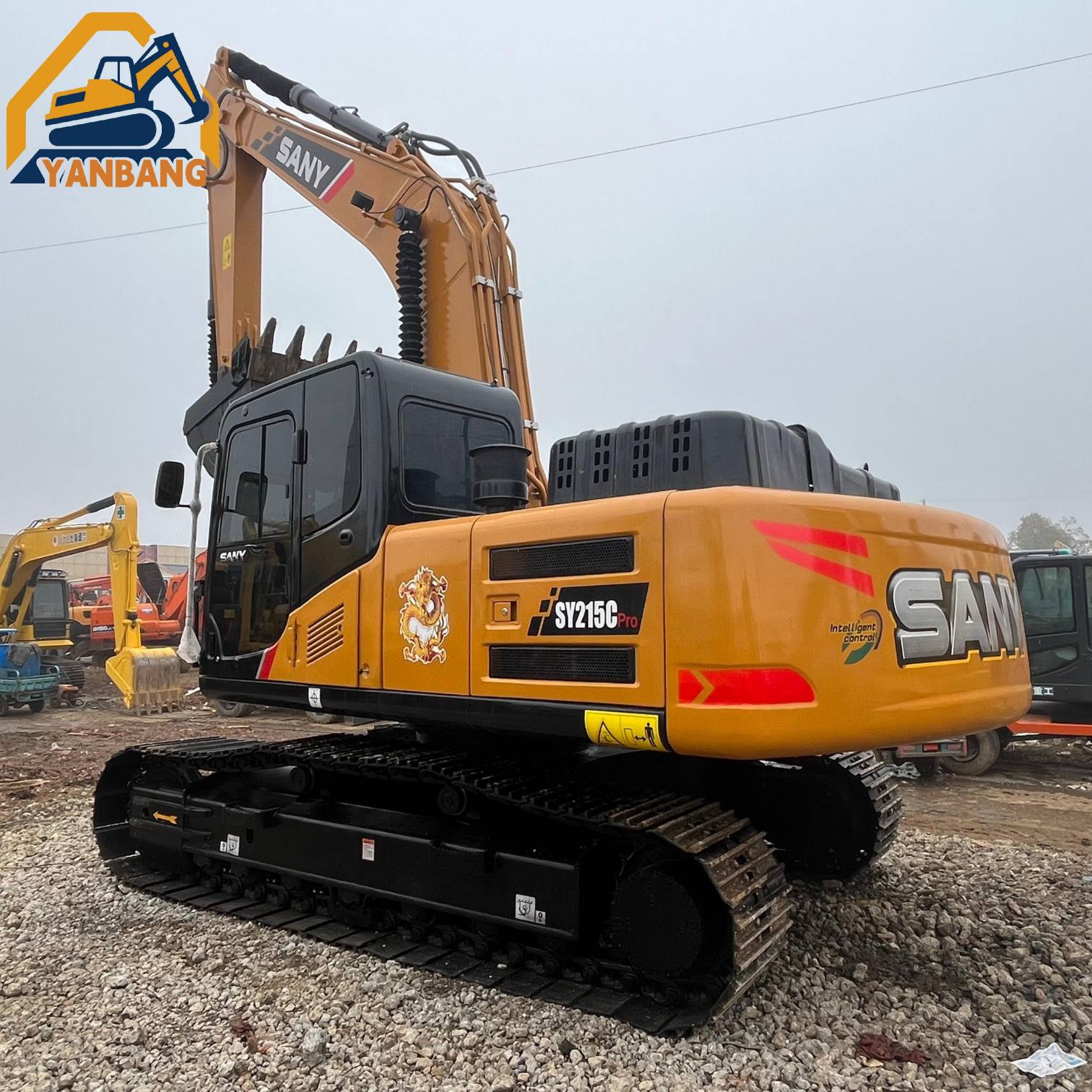

| Model | SY215Cpro |
| Working weight | 21900kg |
| Rated power | 118kW/2000rpm |
| Bucket capacity | 1.1m³ |
| Engine Model | Mitsubishi |
| Walking speed | 5.3/3.1km/h |
| Maximum digging height | 9600mm |
| Maximum digging depth | 6600mm |
| Maximum digging radius | 10280mm |
| Maximum unloading height | 6730mm |
Powerful and energy-efficient: Equipped with a Mitsubishi Fuso 4M50 engine with a rated power of 118kW, it features high torque and quick response, capable of handling complex working conditions. By applying EGR+DOC+DPF technology, the intake and fuel injection are precisely regulated to meet the National IV standards. The control strategy is optimized to maintain the engine’s economical fuel consumption.
Outstanding digging force: The bucket digging force reaches 138kN, and the bucket rod digging force is 103kN. After analyzing the working conditions and adjusting the power in real time, all kinds of excavation operations can be carried out smoothly.

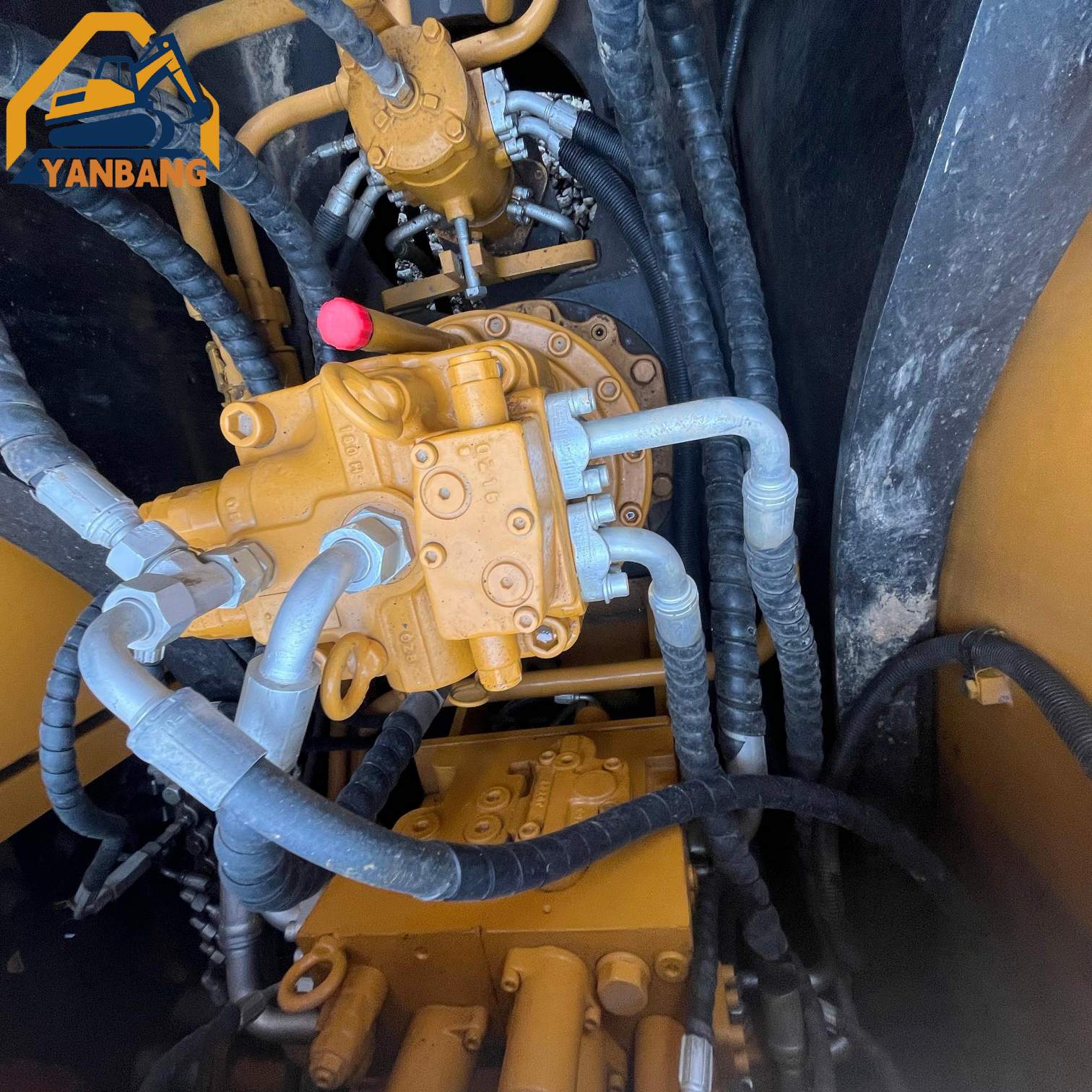

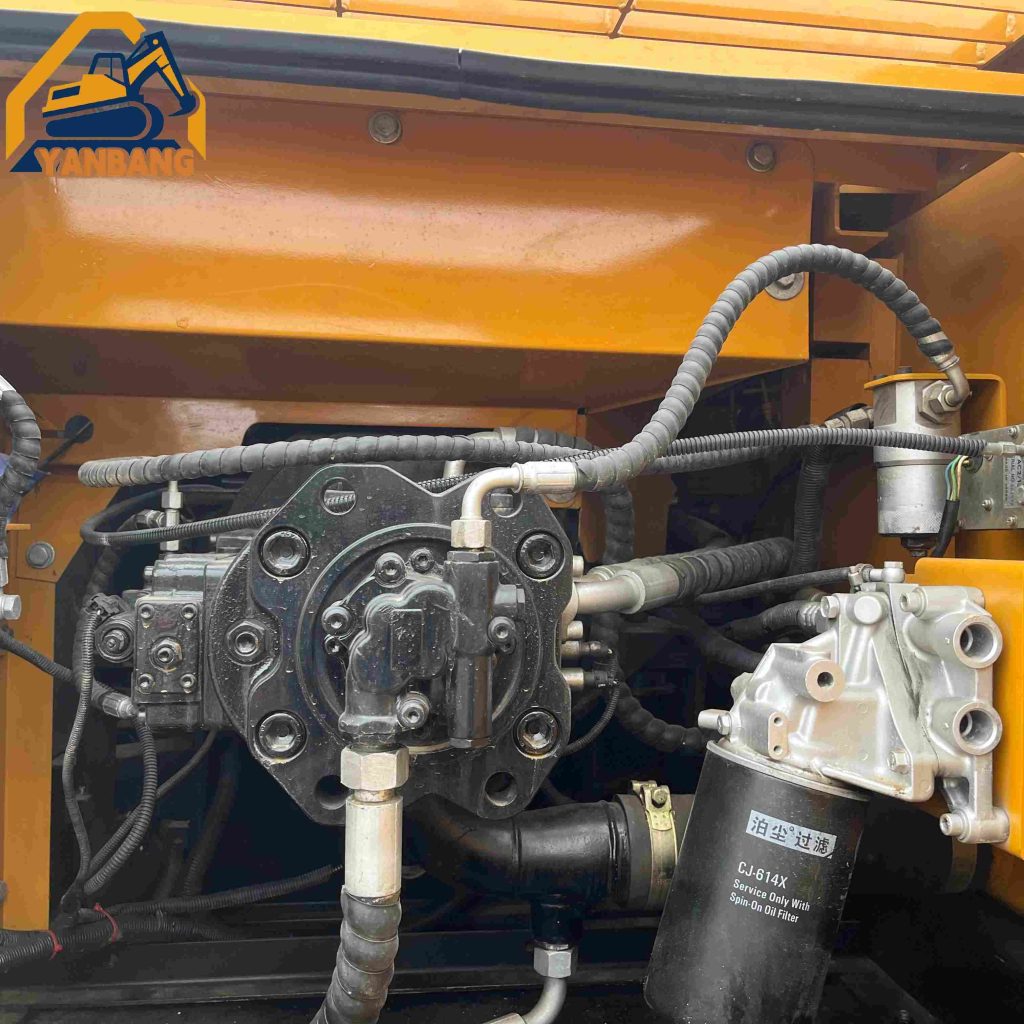

High operational efficiency: By upgrading the Kawasaki fully electrically controlled main valve and main pump, the displacement of the plunger pump has been increased from 112cc to 125cc. Coupled with the optimized positive flow hydraulic system from Sany, the operational efficiency has been enhanced by 5%. The brand-new 14D reducer enhances the rotational capacity by 12%, offering better performance in slope operations and faster start-up during rotation.
