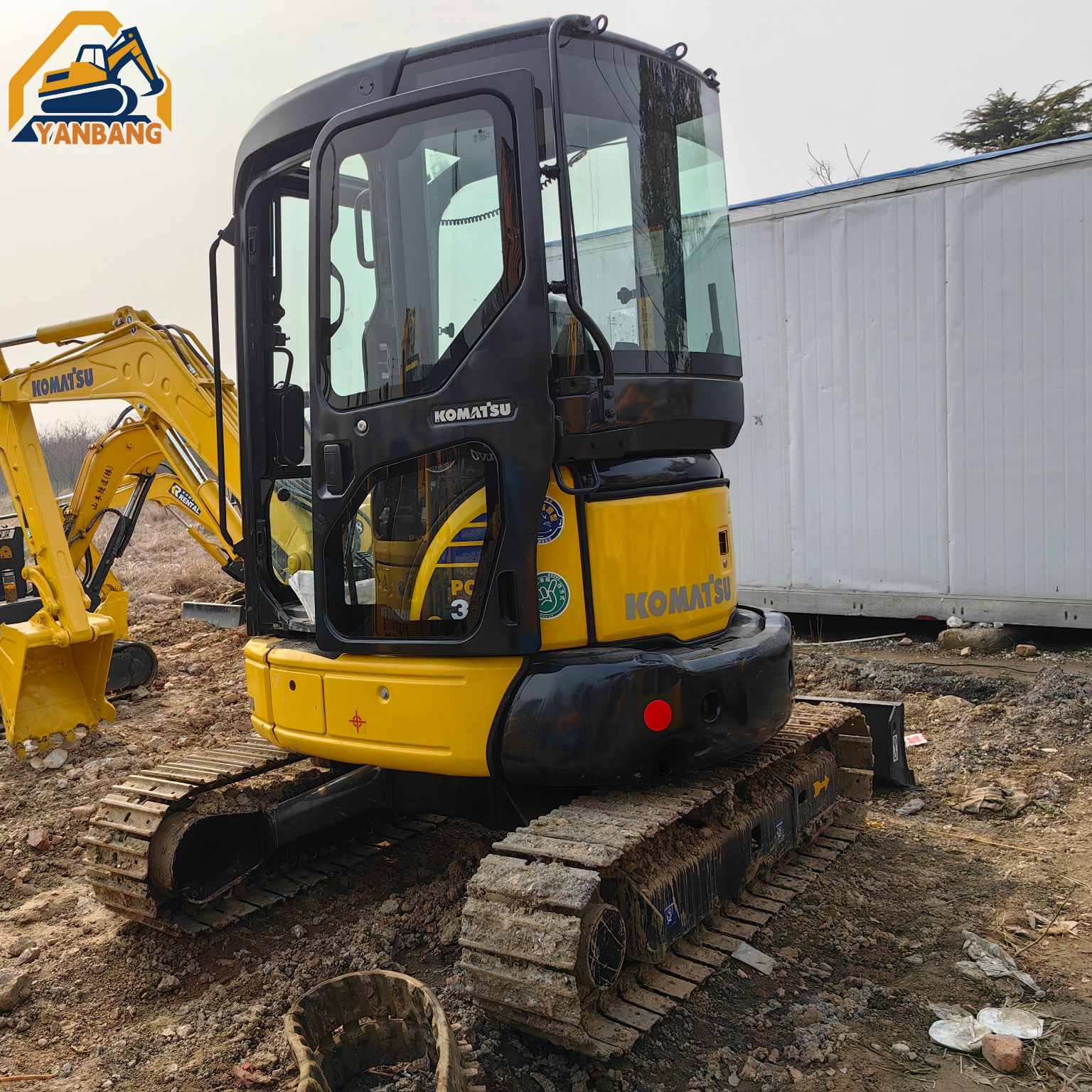

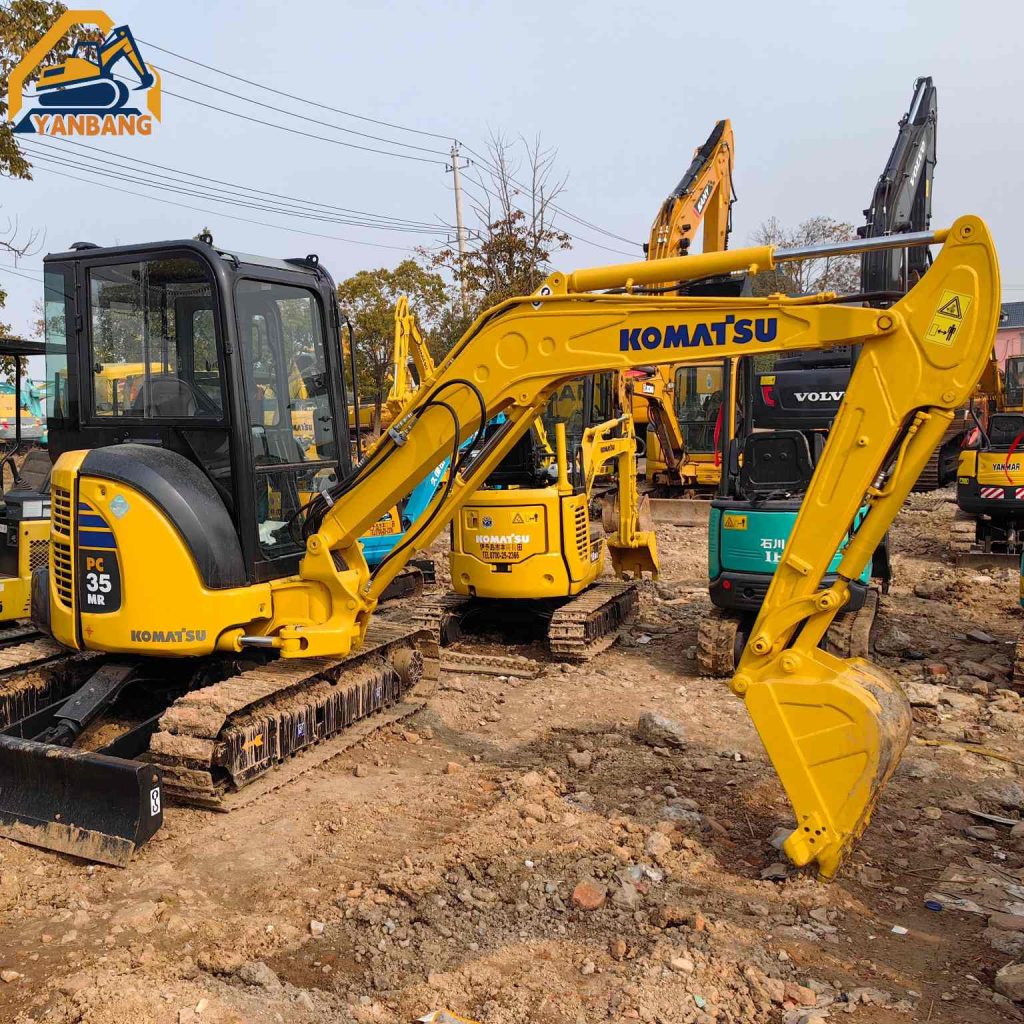

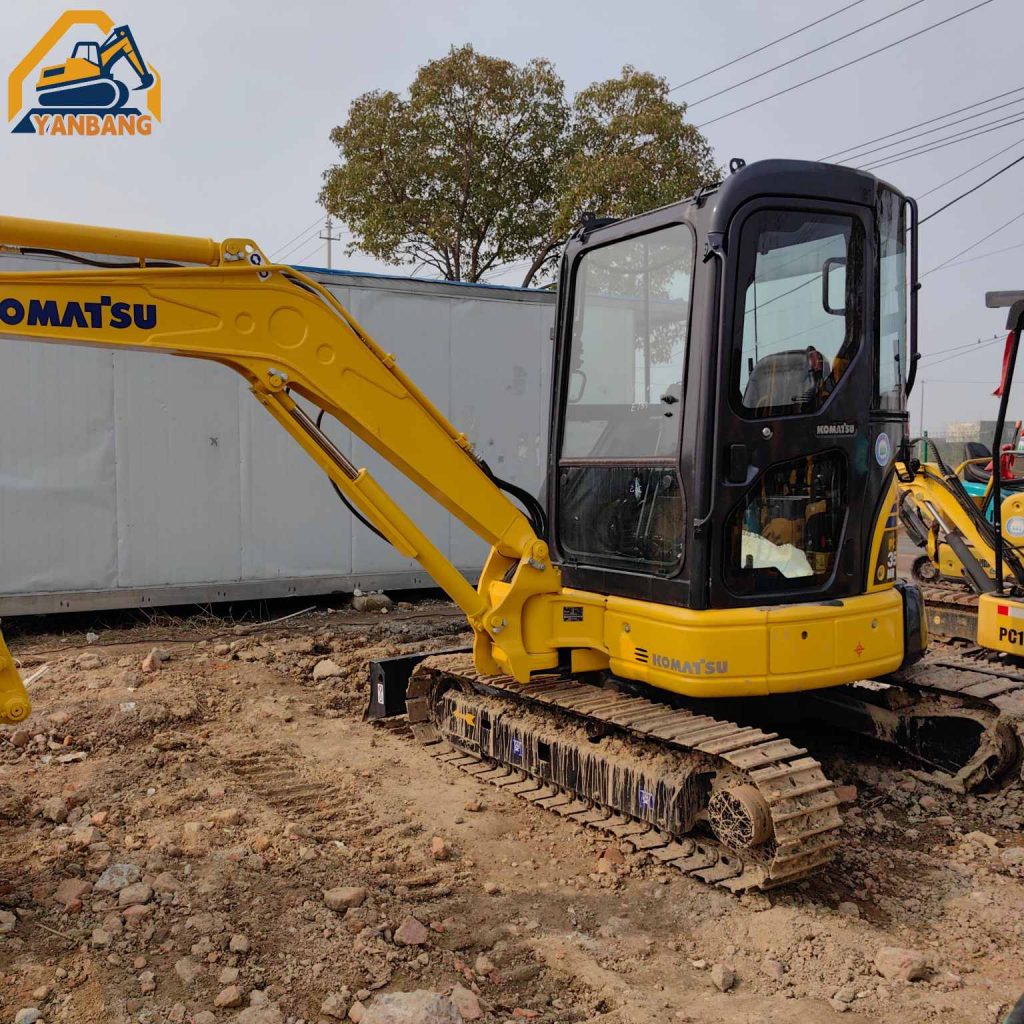

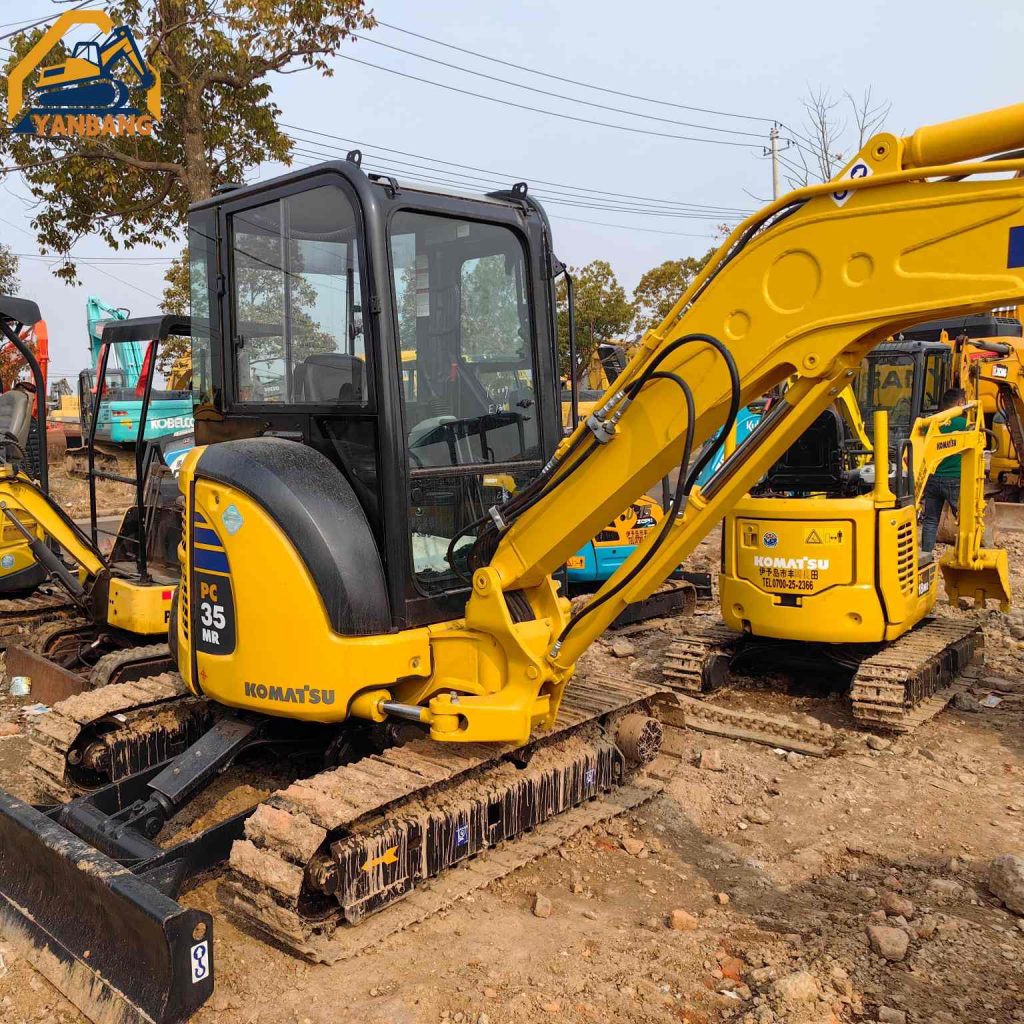

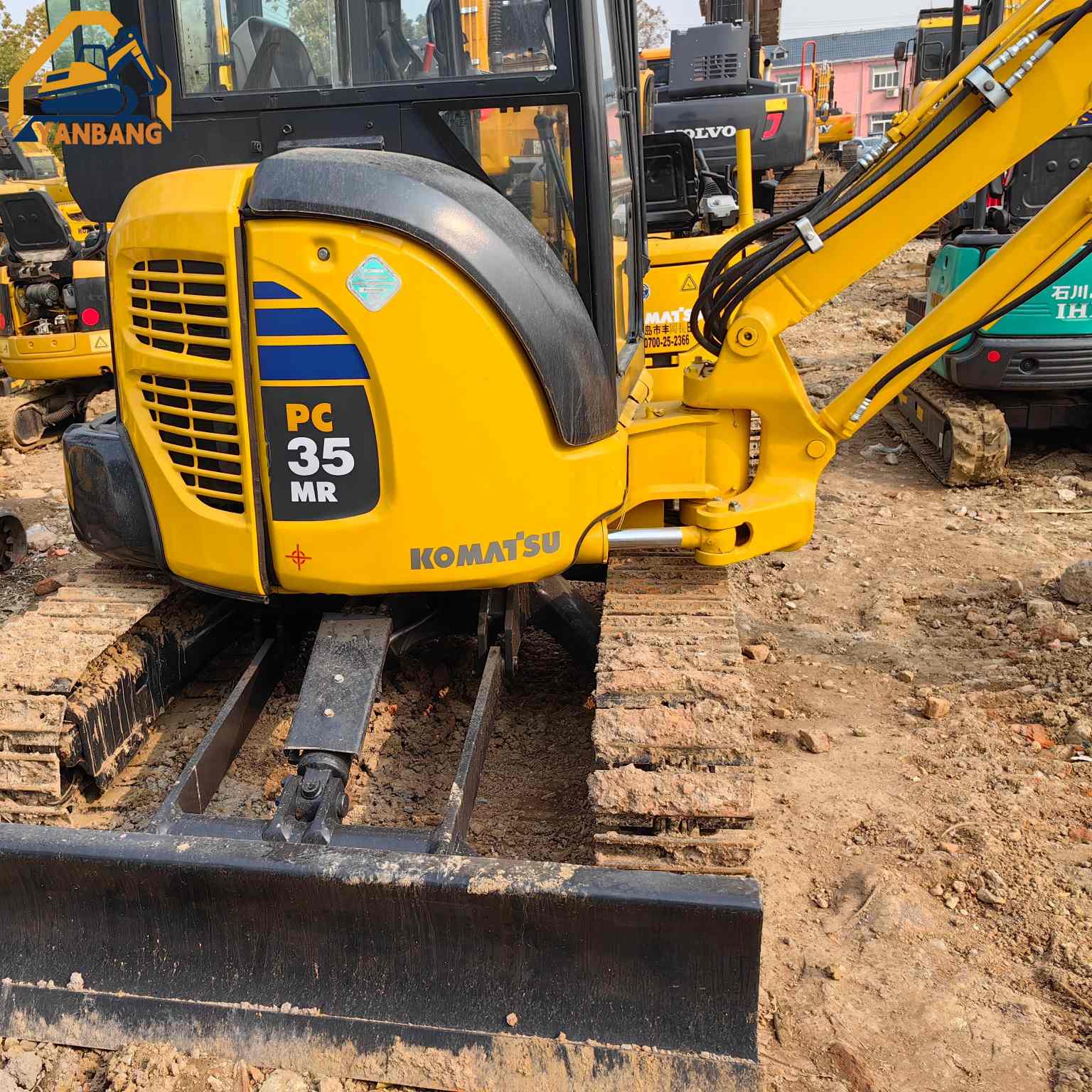

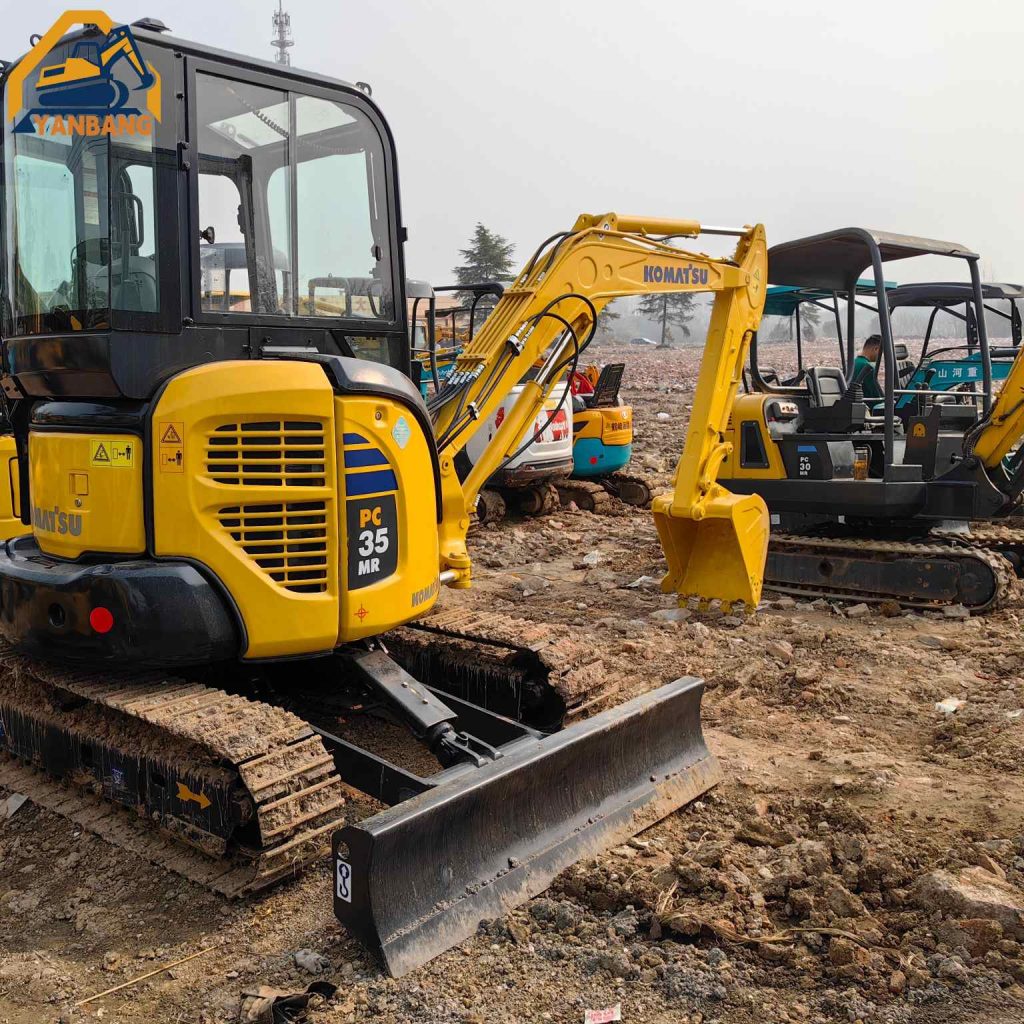

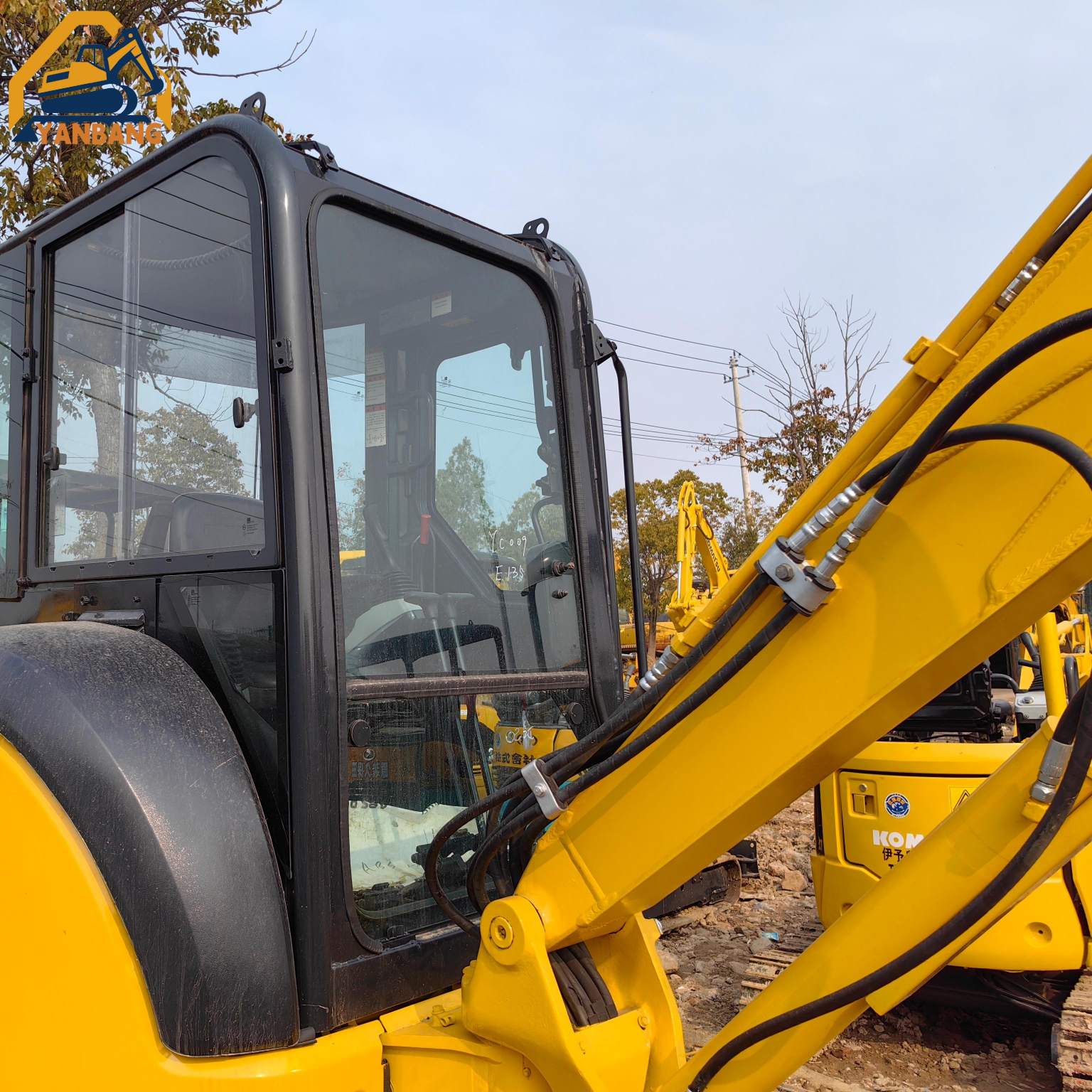

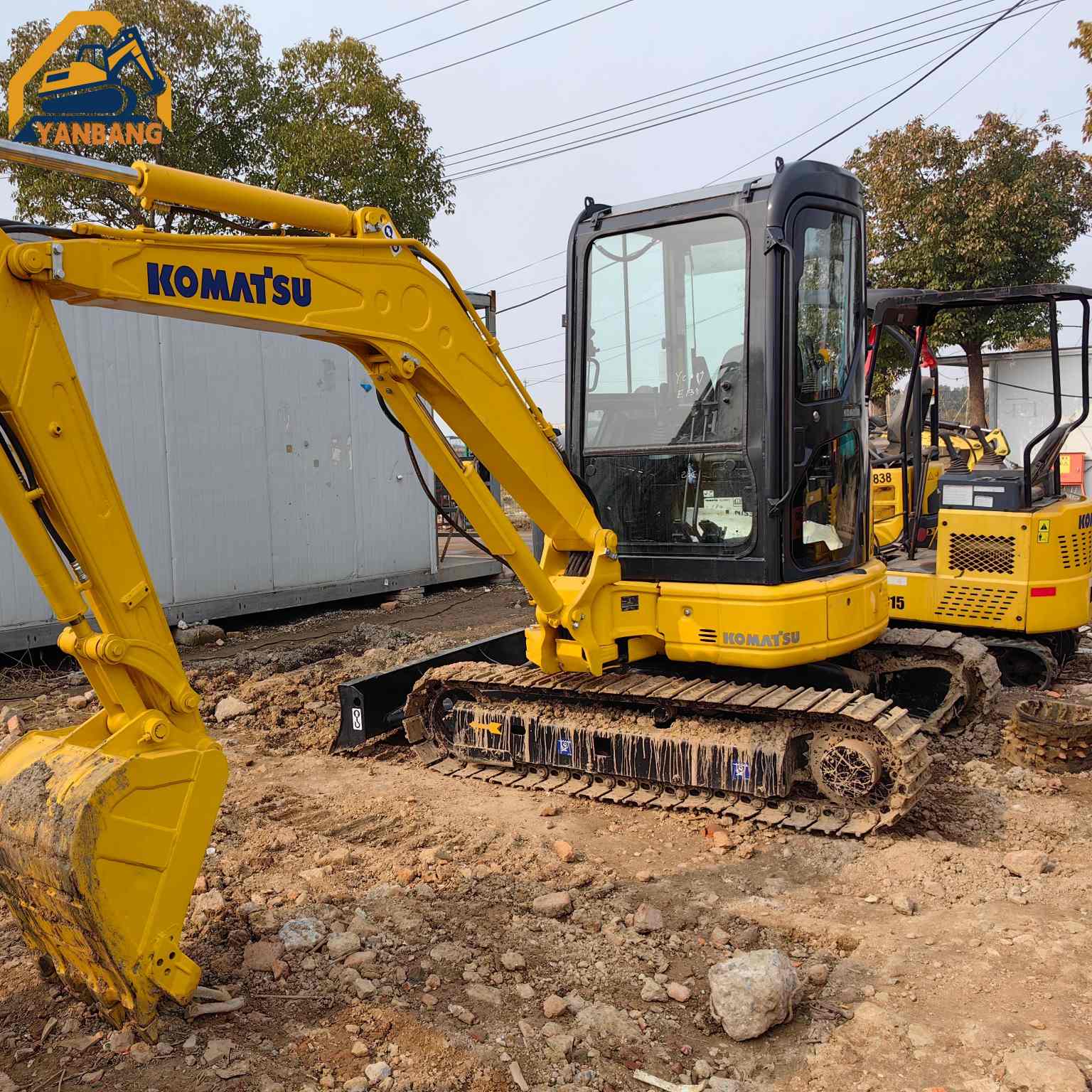

| Model | Komatsu PC35MR-2 |
| Working weight | 3915kg |
| Engine | Komatsu |
| Rated power | 21.7kW/2400rpm |
| Bucket capacity | 0.11m³ |
| Walking speed | 2.8/4.6km/h |
| Maximum digging height | 5010mm |
| Maximum digging depth | 3170mm |
| Maximum digging radius | 5360mm |
| Maximum unloading height | 3530mm |
Compact and flexible: The overall working weight of the machine is 3915kg, with a relatively small transportation dimension. The total length is 4850mm, the total width is 1740mm, and the total height is 2530mm. Moreover, it features a short tail swing design, allowing for flexible operation in narrow Spaces.
Strong power: Equipped with Komatsu 3D88E-5 engine, with a rated power of 21.7kW (29.5PS) at 2400rpm, the power output is stable and can meet the needs of various excavation operations.
Precise operation: Equipped with a pressure-compensated CLSS hydraulic system, it offers flexible and precise control, enabling efficient operation.
Excellent digging performance: The standard bucket capacity is 0.11m³, with a maximum digging depth of 3170mm, a maximum digging radius of 5360mm, and a maximum digging height of 5010mm, demonstrating strong operational capabilities.
The walking speed is available in two Settings: 2.8km/h and 4.6km/h. It can be flexibly switched according to the actual working scenario.
