| Model | SY135C |
| Working weight | 13500kg |
| Rated power | 86kW/2200rpm |
| Bucket capacity | 0.6m³ |
| Engine Model | Isuzu 4JJ1 |
| Walking speed | 3.5/5.5km/h |
| Maximum digging height | 8800mm |
| Maximum digging depth | 5500mm |
| Maximum digging radius | 8350mm |
| Maximum unloading height | 6600mm |
Strong power and energy-saving: Equipped with Isuzu 4JJ1 engine, with a rated power of 86kW, it has a larger torque margin and sufficient power. Adopting high-pressure common rail electronic fuel injection technology and dedicated post-treatment control strategies, it features clean emissions and low fuel consumption.

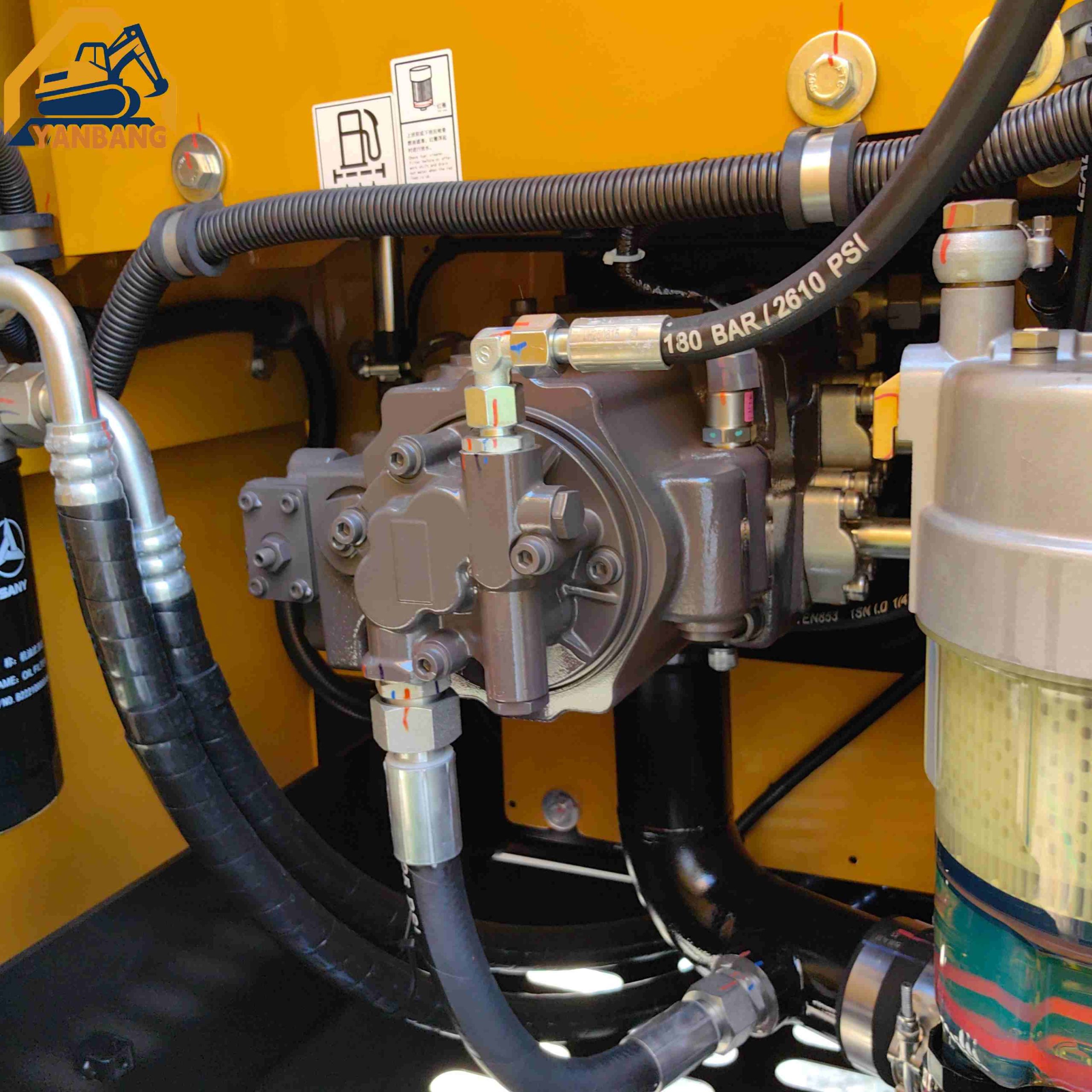

High efficiency in operation: Equipped with a positive flow hydraulic system, large-displacement main pumps, high-performance main valves and large-diameter main valve cores are selected. The overall energy efficiency is increased by 5% to 8%, with good controllability and low digging resistance.

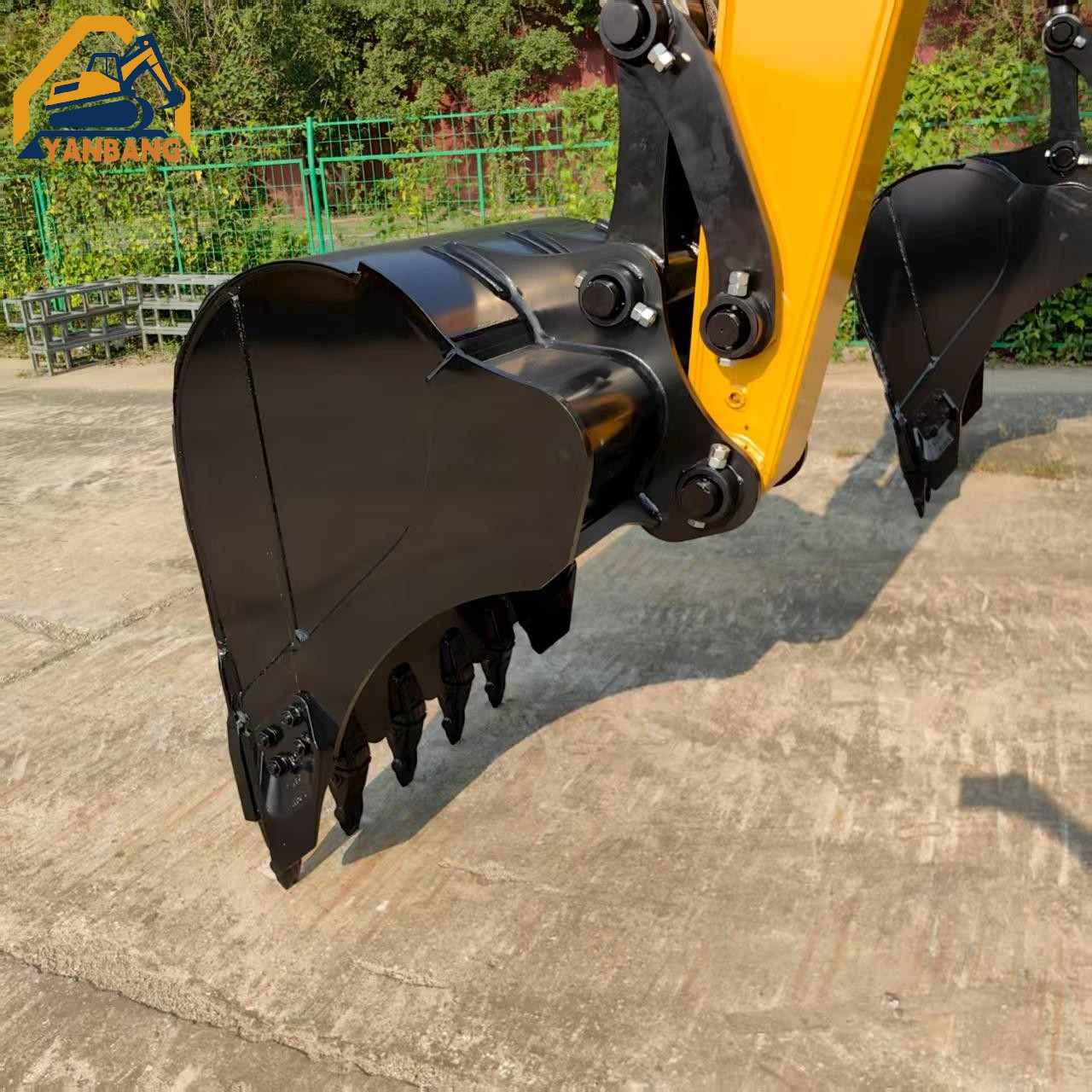

Durable structure: The bucket shape is optimized, featuring a new type of dust-proof ring, a flange structure front edge plate, and a honeycomb high-load-bearing wear-resistant shaft sleeve. The lower part of the vehicle has been upgraded to solve the problems of tooth skipping and wear of the track guard plate.
